MAP = CO × SVR, CI = CO/BSA
Kidney gets 25% of CO, brain gets 15%, heart gets 5%

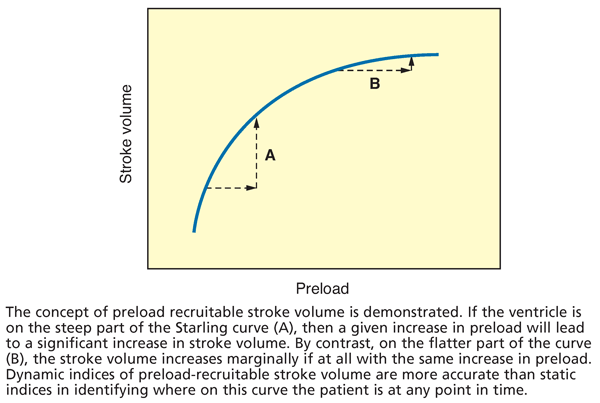

Preload – left ventricular end-diastolic length, linearly related to left ventricular end-diastolic volume (LVEDV) and filling pressure
Afterload – resistance against the ventricle contracting (SVR)
Stroke volume determined by LVEDV, contractility, and afterload
• Stroke volume = LVEDV – LVESV
Ejection fraction = stroke volume/LVEDV
EDV (end-diastolic volume) – determined by preload and distensibility of the ventricle
ESV (end-systolic volume) – determined by contractility and afterload
Cardiac output increases with HR up to 120–150 beats/min, then starts to go down because of decreased diastolic filling time
Atrial kick – accounts for 20% of LVEDV
Anrep effect – automatic increase in contractility secondary to ↑ afterload
Bowditch effect – automatic increase in contractility secondary to ↑ HR
Arterial O2 content (CaO2) = Hgb × 1.34 × O2 saturation + (Po2 × 0.003)
O2 delivery = CO × arterial O2 content (CaO2) × 10
O2 consumption (VO2) = CO × (CaO2 – CvO2); CvO2 = venous O2 content
• Normal O2 delivery-to-consumption ratio is 5:1. CO increases to keep this ratio constant.
• O2 consumption is usually supply independent (consumption does not change until low levels of delivery are reached)
Causes of right shift on oxygen–Hgb dissociation curve (O2 unloading) – ↑ CO2, ↑ temperature, ↑ ATP production, ↑ 2,3-DPG production, or ↓ pH
• Opposite above causes left shift (increased O2 binding)
• Normal p50 (O2 at which 50% of O2 receptors are saturated) = 27 mm Hg
↑ SvO2 (saturation of venous blood, normally 75% ± 5%; used on some Swan–Ganz catheters) – occurs with ↑ shunting of blood or ↓ O2 extraction (eg sepsis, cirrhosis, cyanide toxicity, hyperbaric O2, hypothermia, paralysis, coma, sedation)
↓ SvO2 – occurs with ↑ O2 extraction or ↓ O2 delivery (eg ↓ O2 saturation, ↓ CO, malignant hyperthermia)
Wedge – may be thrown off by pulmonary hypertension, aortic regurgitation, mitral stenosis, mitral regurgitation, high PEEP, poor LV compliance
Swan–Ganz catheter – should be placed in zone III (lower lung)
• Hemoptysis after flushing Swan–Ganz catheter – increase PEEP, which will tamponade the pulmonary artery bleed, mainstem intubate non-affected side; can try to place Fogarty balloon down mainstem on affected side; may need thoracotomy and lobectomy
• Relative contraindications – previous pneumonectomy, left bundle branch block
• Approximate Swan–Ganz catheter distances to wedge – R SCV 45 cm, R IJ 50 cm, L SCV 55 cm, L IJ 60 cm
• Pulmonary vascular resistance (PVR) can be measured only by using a Swan–Ganz catheter (ECHO does not measure PVR)
• Wedge pressure measurements should be taken at end-expiration (for both ventilated and nonventilated patients)
↑ Ventricular wall tension (#1) and HR are the primary determinants of myocardial O2 consumption → can lead to myocardial ischemia
Unsaturated bronchial blood – empties into pulmonary veins; thus, LV blood is 5 mm Hg (PO2) lower than pulmonary capillaries
Alveolar–arterial gradient – is 10–15 mm Hg in a normal nonventilated patient
Blood with the lowest venous saturation → coronary sinus blood (30%)

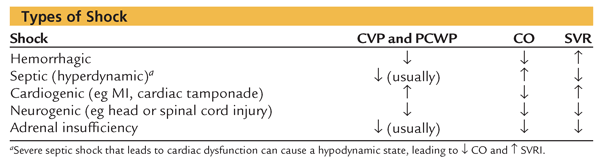

SHOCK
Shock = inadequate tissue oxygenation (most basic definition)
• Tachypnea and mental status changes occur with progressive shock
Adrenal insufficiency
• MCC – withdrawal of exogenous steroids
• Acute – cardiovascular collapse; characteristically unresponsive to fluids and pressors; nausea and vomiting, abdominal pain, fever, lethargy, ↓ glucose, ↑ K
• Tx: Dexamethasone
• Steroid potency
• 1× – cortisone, hydrocortisone
• 5× – prednisone, prednisolone, methylprednisolone
• 30× – dexamethasone
Neurogenic shock – loss of sympathetic tone; usually associated with spine or head injury
• Usually have ↓ HR, ↓ BP, warm skin
• Tx: give volume 1st, then phenylephrine after resuscitation
Hemorrhagic shock – initial alteration is ↑ diastolic pressure
Cardiac tamponade (causes cardiogenic shock)
• Mechanism of hypotension is decreased ventricular filling due to fluid in the pericardial sac around the heart
• Beck’s triad – hypotension, jugular venous distention, and muffled heart sounds
• Echocardiogram shows impaired diastolic filling of right atrium initially (1st sign of cardiac tamponade)
• Pericardiocentesis blood does not form clot
• Tx: fluid resuscitation to temporize situation; need pericardial window or pericardiocentesis
Early sepsis triad – hyperventilation, confusion, hypotension
• Early gram-negative sepsis – ↓ insulin, ↑ glucose (impaired utilization)
• Late gram-negative sepsis – ↑ insulin, ↑ glucose (secondary to insulin resistance)
• Hyperglycemia – often occurs just before patient becomes clinically septic
Neurohormonal response to hypovolemia
• Rapid – epinephrine and norepinephrine release (adrenergic release; results in vasoconstriction and increased cardiac activity)
• Sustained – renin (from kidney; renin-angiotensin pathway activated resulting in vasoconstriction and water resorption), ADH (from pituitary; reabsorption of water), and ACTH release (from pituitary; increases cortisol)
EMBOLI
Fat emboli – petechia, hypoxia, and confusion (can also be similar to pulmonary embolism [PE])
• Sudan red stain may show fat in sputum and urine
• Most common with lower extremity (hip, femur) fractures/orthopaedic procedures
Pulmonary emboli (PE) – chest pain and dyspnea; ↓ PO2 and PCO2; respiratory alkalosis; ↑ HR and ↑ RR; hypotension and shock if massive
• Most PEs arise from iliofemoral region
• Tx: heparin, Coumadin; consider open or percutaneous (suction catheter) embolectomy if patient is in shock despite massive pressors and inotropes
Air emboli – place patient head down and roll to left (keeps air in RV and RA), then aspirate air out with central line or PA catheter to RA/RV
INTRA-AORTIC BALLOON PUMP (IABP)
Inflates on T wave (diastole); deflates on P wave (systole)
Aortic regurgitation is a contraindication to IABP
Place tip of the catheter just distal to left subclavian (1–2 cm below the top of the arch)
Used for cardiogenic shock (after CABG or MI) or in patients with refractory angina awaiting revascularization
Decreases afterload (deflation during ventricular systole)
Improves diastolic BP (inflation during ventricular diastole), which improves diastolic coronary perfusion
RECEPTORS
Alpha-1 – vascular smooth muscle constriction; gluconeogenesis and glycogenolysis
Alpha-2 – venous smooth muscle constriction
Beta-1 – myocardial contraction and rate
Beta-2 – relaxes bronchial smooth muscle, relaxes vascular smooth muscle; increases insulin, glucagon, and renin
Dopamine receptors – relax renal and splanchnic smooth muscle
CARDIOVASCULAR DRUGS
Dopamine (2–5 µg/kg/min initially)
• 2–5 µg/kg/min – dopamine receptors (renal)
• 6–10 µg/kg/min – beta-adrenergic (heart contractility)
• >10 µg/kg/min – alpha-adrenergic (vasoconstriction and ↑ BP)
Dobutamine (3 µg/kg/min initially)
• Beta-1 (↑ contractility mostly, tachycardia with higher doses)
Milrinone
• Phosphodiesterase inhibitor (↑ cAMP)
• Results in ↑ Ca flux and ↑ myocardial contractility
• Also causes vascular smooth muscle relaxation and pulmonary vasodilation
Phenylephrine (10 µg/min initially)
• Alpha-1, vasoconstriction
Norepinephrine (5 µg/min initially)
• Low dose – beta-1 (↑ contractility)
• High dose – alpha-1 and alpha-2
• Potent splanchnic vasoconstrictor
Epinephrine (1–2 µg/min initially)
• Low dose – beta-1 and beta-2 (↑ contractility and vasodilation)
• Can ↓ BP at low doses
• High dose – alpha-1 and alpha-2 (vasoconstriction)
• ↑ Cardiac ectopic pacer activity and myocardial O2 demand
Isoproterenol (1–2 µg/min initially)
• Beta-1 and beta-2, ↑ HR and contractility, vasodilates
• Side effects: extremely arrhythmogenic; ↑ heart metabolic demand (rarely used); may actually ↓ BP
Vasopressin
• V-1 receptors – vasoconstriction of vascular smooth muscle
• V-2 receptors (intrarenal) – water reabsorption at collecting ducts
• V-2 receptors (extrarenal) – mediate release of factor VIII and von Willebrand factor (vWF)
Nipride – arterial vasodilator
• Cyanide toxicity at doses > 3 µg/kg/min for 72 hours; can check thiocyanate levels and signs of metabolic acidosis
• Tx for cyanide toxicity – amyl nitrite, then sodium nitrite
Nitroglycerin – predominately venodilation with ↓ myocardial wall tension from ↓ preload; moderate coronary vasodilator
Hydralazine – α-blocker; lowers BP
PULMONARY SYSTEM
Compliance – (change in volume)/(change in pressure)
• High compliance means lungs easy to ventilate
• Pulmonary compliance is decreased in patients with ARDS, fibrotic lung diseases, reperfusion injury, pulmonary edema, atelectasis
Aging – ↓ FEV1 and vital capacity, ↑ functional residual capacity (FRC)
V/Q ratio (ventilation/perfusion ratio) – highest in upper lobes, lowest in lower lobes
Ventilator
• ↑ PEEP to improve oxygenation (alveoli recruitment) → improves FRC
• ↑ Rate or volume to ↓ CO2
• Normal weaning parameters – negative inspiratory force (NIF) > 20, FIO2 ≤ 40%, PEEP 5 (physiologic), pressure support 5, RR < 24/min, HR < 120 beats/min, PO2 > 60 mm Hg, PCO2 < 50 mm Hg, pH 7.35–7.45, saturations > 93%, off pressors, follows commands, can protect airway
• Pressure support – decreases the work of breathing (inspiratory pressure is held constant until minimum volume is achieved)
• Keep FIO2 ≤ 60% – prevents O2 radical toxicity
• Barotrauma – high risk if plateaus > 30 and peaks > 50 → need to decrease TV; consider pressure control ventilation
• PEEP – improves FRC and compliance by keeping alveoli open → best way to improve oxygenation
• Excessive PEEP complications – ↓ RA filling, ↓ CO, ↓ renal blood flow, ↓ urine output, and ↑ pulmonary vascular resistance
• High-frequency ventilation – used a lot in kids; tracheoesophageal fistula, bronchopleural fistula
Pulmonary function measurements
• Total lung capacity (TLC) – lung volume after maximal inspiration
• TLC = FVC + RV
• Forced vital capacity (FVC) – maximal exhalation after maximal inhalation
• Residual volume (RV) – lung volume after maximal expiration (20% TLC)
• Tidal volume (TV) – volume of air with normal inspiration and expiration
• Functional residual capacity (FRC) – lung volume after normal exhalation
• FRC = ERV + RV
• Surgery (atelectasis), sepsis (ARDS), and trauma (contusion, atelectasis, ARDS) – all ↓ FRC
• Expiratory reserve volume (ERV) – volume of air that can be forcefully expired after normal expiration
• Inspiratory capacity – maximum air breathed in from FRC
• FEV1 – forced expiratory volume in 1 second (after maximal inhalation)
• Minute ventilation = TV × RR
• Restrictive lung disease – ↓ TLC, ↓ RV, and ↓ FVC
• FEV1 can be normal or ↑
• Obstructive lung disease – ↑ TLC, ↑ RV, and ↓ FEV1
• FVC can be normal or ↓
Dead space – normally to the level of the bronchiole (150 mL)
• Area of lung that is ventilated but not perfused
• Dead space increases with drop in cardiac output, PE, pulmonary HTN, ARDS, and excessive PEEP; can lead to high CO2 buildup (hypercapnia)
COPD – ↑ work of breathing due to prolonged expiratory phase

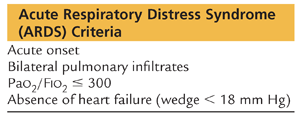

ARDS – mediated primarily by PMNs; get ↑ proteinaceous material, ↑ A-a gradient, ↑ pulmonary shunt
• Most common cause is pneumonia; other causes – sepsis, multi-trauma, severe burns, pancreatitis, aspiration, DIC
