Endocrine Diseases

Endocrine Diseases

Hongbo Yu


This chapter focuses on six common groups of endocrine disorders based on organ systems: diabetes mellitus, disorders of the thyroid gland, disorders of the adrenal gland, gonadal disorders, disorders of the pituitary gland, and disorders of the parathyroid gland and mineral metabolism. For each organ system, the diseases are further discussed according to clinical presentations and/or laboratory findings. The differential diagnosis, laboratory workup, and radiologic studies for each disease are also considered.

General principles in the diagnosis of endocrine diseases include the following:

  • Stimulatory tests should be performed if hypofunction is suspected and suppression tests if hyperfunction is suspected.

  • Suppression tests suppress normal glands but not autonomous secretion.

  • Patient preparation is particularly important for hormone studies, results of which may be markedly affected by many factors such as stress, position, fasting state, time of day, preceding diet, and drug therapy. These all should be recorded on the laboratory test requisition form and discussed with the laboratory prior to test ordering.

  • Appropriate and timely transportation to the laboratory and preparation of specimen are essential.

  • No single test adequately reflects the endocrine status in all conditions.

  • Multiple gland hypofunction should evaluate the pituitary gland.


□ Overview

DM affects approximately 5% of the world population and 8% of the U.S. population. It is the fourth leading cause of death in the United States. Of the estimated 18 million people with primary DM in the United States, 90-95% have type 2 DM.

□ Types and Classification

The recent classification focuses on the underlying pathophysiologic process, rather than descriptions based upon age at onset or type of treatment.

  • Type 1: immune mediated, results in an absolute insulin deficiency.

  • Type 2: relative insulin deficiency due to abnormalities of both insulin secretion and insulin action. Insulin levels are sufficient to prevent lipid mobilization and ketosis.

  • Gestational diabetes: diagnosed during pregnancy. Only 2% of patients with gestational diabetes remain diabetic after delivery. Forty percent of the patients will develop overt diabetes within 15 years, mostly type 2 but occasionally type 1.

  • Specific types of diabetes:

    • ▼ Genetic defects of beta cell function

    • ▼ Genetic defects in insulin action

    • ▼ Diseases of the exocrine pancreas, such as pancreatitis, trauma, pancreatectomy, neoplasia, cystic fibrosis (CF), hemochromatosis, and fibrocalculous pancreatopathy

  • Associated with endocrinopathies (i.e., Cushing syndrome), drugs (i.e., corticosteroids), or chemicals.

□ Who Should Be Suspected?

The clinical onset of diabetes can be acute or insidious, depending both on the degree of insulin deficiency and on the intercurrent level of physiologic stress. Patients with the following symptoms and signs should be tested:

  • Classic symptoms of hyperglycemia, such as thirst, polyuria, weight loss, and visual blurring

  • Serendipitous finding of hyperglycemia or known impaired glucose tolerance

  • Complications of diabetes, such as proteinuria, neuropathy, cardiovascular complications, and retinopathy

  • Evidence of dehydration, orthostatic hypotension, confusion, or coma

□ Screening for Diabetes Mellitus

  • In the absence of specific symptoms

    • ▼ Routine screening for type 1 DM is not recommended, since there is no accepted treatment for the asymptomatic phase of type 1 DM.

    • ▼ However, for type 2 DM, the American Diabetes Association (ADA) recommends screening for diabetes or prediabetes in all adults with body mass index (BMI) ≥25 kg/m2 and one or more additional risk factors for diabetes (see subsequent text of this chapter). In individuals without risk factors, testing should begin at age 45 years. Fasting plasma glucose is the recommended screening test, since it is faster, easier to perform, more convenient, acceptable to patients, and less expensive.

  • Risk factors for diabetes:

    • ▼ Age ≥45 years

    • ▼ Overweight (BMI ≥ 25 kg/m2)

    • ▼ Family history diabetes mellitus in a first-degree relative

    • ▼ Habitual physical inactivity

    • ▼ Belonging to a high-risk ethnic or racial group (e.g., African American, Hispanic, Native American, Asian American, and Pacific Islander)

    • ▼ History of delivering a baby weighing >4.1 kg (9 lb) or of gestational DM

    • ▼ Hypertension (blood pressure ≥140/90 mm Hg)

    • ▼ Dyslipidemia defined as a serum high-density lipoprotein cholesterol concentration ≤35 mg/dL (0.9 mM) and/or a serum triglyceride concentration ≥250 mg/dL (2.8 mM)

    • ▼ Previously identified impaired glucose tolerance (IGT) or impaired fasting glucose (IFG)

    • ▼ Polycystic ovary syndrome (PCOS)

    • ▼ History of vascular disease

□ How to Confirm the Diagnosis

ADA criteria for the diagnosis of diabetes mellitus:

  • Symptoms of diabetes and a casual plasma glucose ≥200 mg/dL (11.1 mM). Casual is defined as any time of day without regard to time since the last meal. The classic symptoms of diabetes include polyuria, polydipsia, and unexplained weight loss.


  • Fasting plasma glucose ≥126 mg/dL (7.0 mM). Fasting is defined as no caloric intake for at least 8 hours.


  • Two-hour plasma glucose ≥200 mg/dL (11.1 mM) during an oral glucose tolerance test (OGTT). The test should be performed using a glucose load containing the equivalent of 75 g anhydrous glucose dissolved in water.


  • Glycosylated hemoglobin A1c (HbA1c) ≥6.5%. In 2010, the ADA added this as another criterion for the diagnosis of DM. The diagnostic test should be performed using a method that is certified by the National Glycohemoglobin Standardization Program (NGSP) and standardized or traceable to the Diabetes Control and Complications Trial reference assay. Point-of-care HbA1c assays are not sufficiently accurate at this time to use for diagnostic purposes. HbA1c is an extremely valuable clinical tool useful both in the diagnosis and in management of diabetic patients. HbA1c has a circulating life span of about 90 days, and thus, the measurement of HbA1c provides information about the level of glycemic control over a 3-month period. However, if the patient’s red blood cells have abnormal survival time, the value of HbA1c may not be reliable. It will be falsely low in patients with hemolytic anemias, and it may be falsely elevated in patients with polycythemia vera or postsplenectomy. It cannot be used as a reliable index for glycemic control in patients with chronic liver diseases due to increased erythrocyte turnover.

    In the absence of unequivocal hyperglycemia, the diagnosis of DM must be confirmed on a subsequent day by measuring any one of the three criteria (b, c, and d). However, in symptomatic patients with blood glucose ≥200 mg/dL (11.1 mM) or patients with ketonuria and clear manifestations of type 1 DM, the diagnosis is established and further evaluation is not needed.

    Patients with prediabetic conditions (Table 8-1) should be counseled on issues related to lowering their risk for macrovascular diseases (smoking cessation, use of aspirin, diet, and exercise), should have measurements of blood pressure and serum lipids, and should also be encouraged to modify their lifestyle and reduce their weight.



□ Overview

The clinical manifestations of thyrotoxicosis are largely independent of its cause. However, the disorder that causes thyrotoxicosis may have other effects. The most common form is Graves disease, comprising 70-80% of the cases.

□ Etiology

  • Graves disease (diffuse toxic goiter) is the prototypic autoimmune hyperthyroid condition. Prevalence is approximately 1-2% in women; in men, the prevalence is about one tenth of that. Patients commonly have a family history of thyroid dysfunction (hyperthyroidism or hypothyroidism). It may be accompanied by an infiltrative orbitopathy and ophthalmopathy. In patients and their relatives, there is an increased frequency of other autoimmune disorders, such as DM, pernicious anemia, and myasthenia gravis. The radioactive iodine uptake (RAIU) is typically elevated unless the patient has been exposed to excess iodine or acutely to large dose of glucocorticoids. The circulating autoantibodies specific to Graves disease are directed against the thyroid-stimulating hormone (TSH) receptor and can be measured directly.

  • Toxic multinodular goiter (MNG) is a disorder in which hyperthyroidism arises in a MNG, usually of long standing. The overproduction of thyroid hormone is usually less than in Graves disease and is almost never accompanied by infiltrative ophthalmopathy. All patients with MNG should be screened annually with a serum TSH.

  • Toxic adenoma is usually caused by a single adenoma sometimes referred to as hyperfunctioning solitary nodule or toxic nodule. It often shows a suppressed TSH, which appears in a radioiodine thyroid scan as a localized area of increased radioiodine accumulation.

  • Chorionic gonadotropin-induced hyperthyroidism can be physiologic during pregnancy (transient gestational thyrotoxicosis) or associated with trophoblastic tumors.

  • Iodide-induced hyperthyroidism. Administration of supplemental iodine to subjects with endemic iodine deficiency goiter can result in iodideinduced hyperthyroidism. Amiodarone, an antiarrhythmic medication, is the most common drug that has been reported to be associated with iodine-induced thyrotoxicosis.

  • Autoimmune (Hashimoto) thyroiditis can be associated with transient thyrotoxicosis, which is caused by thyroid cell breakdown, and the hyperthyroid symptoms are of abrupt onset and short duration.

  • Subacute thyroiditis is an acute inflammatory disorder of the thyroid gland, which is caused directly or indirectly by a viral infection. The symptoms of fever, malaise, and neck soreness frequently overshadow the symptoms of hyperthyroidism. Characteristic findings are of a tender thyroid gland, an elevated erythrocyte sedimentation rate (ESR), and a low RAIU.

  • Excess thyroid hormone ingestion can be either iatrogenic or factitious. The presence of a low, rather than elevated, serum thyroglobulin level in a patient with thyrotoxic manifestations and a low RAIU is very suspicious for exogenous hormone ingestion rather than thyroid hyperfunction.

  • Thyroid storm (accelerated hyperthyroidism) represents an extreme accentuation of thyrotoxicosis. It is an uncommon but serious complication, with a mortality of 10-75%. Manifestations include severe fever, marked tachycardia, cardiac arrhythmias, tremulousness, and altered mental status.

  • Subclinical (mild) hyperthyroidism refers to the situation that there are no signs or symptoms of thyrotoxicosis, but the serum TSH is subnormal despite normal serum free thyroid hormone concentrations. The diagnosis requires several subnormal TSH concentration results spaced months apart.

  • Ectopic thyroid hormone excretion from the ovary (struma ovarii).

□ Who Should Be Suspected?

Signs and symptoms of thyrotoxicosis include:

  • Anxiety, emotional lability, nervousness, and irritability

  • Heat intolerance and increased perspiration

  • Weight loss despite a normal or increased appetite

  • Tremor, palpitations, tachycardia, proximal muscle weakness, and exophthalmos

  • Oligomenorrhea in women; gynecomastia and erectile dysfunction in men

□ Laboratory Findings

The availability of sensitive and reliable assays for serum TSH and free thyroxine (T4) has made the laboratory diagnosis of hyperthyroidism rather straightforward (Figure 8-1).

  • Serum TSH is the most cost-effective screening test. If the value is normal, the patient is very unlikely to have hyperthyroidism. In hyperthyroidism, serum TSH is below normal and frequently <0.1 µIU/mL. TSH may remain decreased for many months in treated formerly hyperthyroid patients; therefore, thyroid hormone levels more accurately reflect the clinical situation.

  • Serum free T4 is important to confirm and determine the degree of hyperthyroidism in a patient with a low TSH.

  • Serum T3 is usually elevated with hyperthyroidism. Assessment of T3 levels is important to determine the severity of the hyperthyroidism and to monitor the response to treatment.

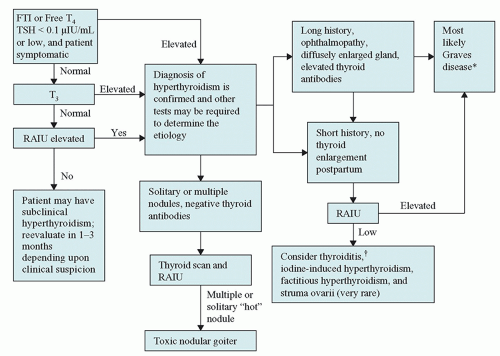

    Figure 8-1. Algorithm for the diagnosis of hyperthyroidism. *Graves disease can be confirmed by measuring thyroid antibodies. Suspect postpartum thyroiditis if within 6 months of delivery, subacute thyroid if associated with tender gland and constitutional symptoms, and silent thyroiditis if neither. T4, thyroxine; FTI, free thyroxine index; RAIU, radioactive iodine uptake; T3, triiodothyronine; TSH, thyroid-stimulating hormone.

  • RAIU is often elevated in Graves disease. However, the diagnostic accuracy of RAIU in hyperthyroidism does not approach that of the serum TSH plus free T4 measurement. Therefore, determining RAIU is not useful in the diagnosis of straightforward Graves disease but is useful in excluding thyrotoxicosis not caused by hyperthyroidism. Very low values of RAIU in association with thyrotoxicosis signal the presence of factitious thyrotoxicosis, the ectopic thyroid tissue, the subacute thyroiditis, or the thyrotoxic phase of autoimmune thyroiditis.

  • Thyrotropin receptor autoantibodies are present in 70-100% of the patients with Graves disease, and their measurement is not usually necessary for diagnosis, but it may be helpful in prognosis because patients who have high titers that do not decrease with antithyroid drug treatment are unlikely to go into remission. Measurement of thyrotropin receptor autoantibodies is important in pregnancy, because a high titer at the end of pregnancy correlates with an increased risk of neonatal hyperthyroidism.

  • Abnormal TSH can also be seen in various nonthyroidal diseases. Simultaneous measurement of TSH with free T4 is useful in evaluating the differential diagnoses.

Suggested Readings

Khan F, Sachs H, Pechet L, et al. Guide to Diagnostic Testing. Philadelphia, PA: Lippincott Williams & Wilkins; 2002.

Kronenberg HM, Melmed S, Polonsky KS, et al. Williams Textbook of Endocrinology, 11th ed. Philadelphia, PA: Saunders, Elsevier Inc., 2008.

Ross DS. Diagnosis of hyperthyroidism. In: Post TW, ed. UpToDate. Waltham, MA: UpToDate, Inc.; 2018.

Ross DS. Overview of the clinical manifestations of hyperthyroidism in adults. In: Post TW, ed. UpToDate. Waltham, MA: UpToDate, Inc.; 2018.


□ Overview

The diagnosis of hypothyroidism relies heavily upon laboratory tests because of the lack of specificity of the typical clinical manifestations. The prevalence of hypothyroidism is approximately 5% in adults and 15% in women older than 65 years of age. Hypothyroidism is less common in men, with a five to eight times lower incidence. Hypothyroidism is far more common than hyperthyroidism. Hypothyroidism is usually easily treated with thyroid hormone replacement. It is now hypothesized that autoimmune hyperthyroidism (Graves disease) and hypothyroidism (Hashimoto thyroiditis) represent two extremes of one spectrum of autoimmune thyroid disease.

□ Etiology

  • Primary hypothyroidism

    • ▼ Hashimoto thyroiditis is the most common cause of hypothyroidism in areas of the world in which dietary iodine is sufficient. It usually
      presents with goiter, hypothyroidism, or both. Goiter usually develops gradually. The diagnosis of Hashimoto thyroiditis is confirmed by the presence of thyroid autoantibodies, including thyroid peroxidase (TPO) antibody and thyroglobulin antibody.

    • ▼ Iatrogenic: thyroidectomy and radioiodine therapy or external irradiation for the treatment of carcinoma, hyperthyroidism, or goiter can lead to hypothyroidism.

    • ▼ Iodine deficiency (endemic goiter) almost always occurs in areas of environmental iodine deficiency. The incidence of endemic goiter has been greatly reduced by the introduction of iodized salt.

    • ▼ Drugs: thioamides, lithium, amiodarone, interferon, and interleukin-2.

    • ▼ Infiltrative diseases such as fibrous thyroiditis, hemochromatosis, and sarcoidosis.

    • ▼ Transient hypothyroidism is defined as a period of reduced free T4 with suppressed, normal, or elevated TSH levels that are eventually followed by a euthyroid state. This form of hypothyroidism usually occurs in the clinical context of subacute (postviral) thyroiditis, lymphocytic (painless) thyroiditis, or postpartum thyroiditis.

    • ▼ Congenital thyroid agenesis, dysgenesis, or defect in hormone synthesis.

    • ▼ Subclinical hypothyroidism is defined as a normal serum free T4 concentration and a slightly high serum TSH concentration. These patients usually have nonspecific symptoms, and a substantial proportion of them eventually develop overt hypothyroidism.

  • Secondary and tertiary (central) hypothyroidism refers to hypothyroidism induced by deficiency of either TSH or thyrotropin-releasing hormone (TRH). This type of hypothyroidism is much less common than primary hypothyroidism, and the symptoms are usually milder than in primary hypothyroidism.

  • Generalized thyroid hormone resistance.

□ Who Should Be Suspected?

Signs and symptoms of hypothyroidism include:

  • Fatigue, weight gain, depression, and cold intolerance.

  • Dry skin, brittle hair, constipation, and muscle cramps.

  • Hypermenorrhea in women.

  • Thyroid enlargement (goiter), puffy face and hands (myxedema), and delayed ankle reflex relaxation phase.

  • Hypothyroidism in infants and children leads to retardation of mental development and of growth. Severe hypothyroidism in infancy is termed cretinism.

  • Myxedema coma refers to severe prolonged hypothyroidism, which is manifested by bradycardia, congestive heart failure, hypothermia, hypoventilation, and paralytic ileus. It is an uncommon but life-threatening condition if not detected and treated promptly.

  • Secondary and tertiary hypothyroidism should be suspected in patients with known hypothalamic or pituitary disease, in patients with a pituitary mass, or in patients with other hormonal deficiencies.

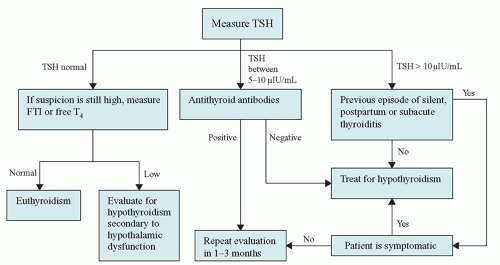

Figure 8-2. Algorithm for the diagnosis of hypothyroidism. T4, thyroxine; FTI, free thyroxine index; TSH, thyroid-stimulating hormone.

□ Laboratory Findings

  • Laboratory confirmation of the diagnosis of hypothyroidism (see Figure 8-2) consists of measuring serum TSH and free T4. Primary hypothyroidism is characterized by a high serum TSH concentration and a low serum free T4 concentration. Secondary hypothyroidism is characterized by a low serum TSH concentration as well as a low serum T4 concentration.

  • Total T4, RAIU, and free T4 index are usually decreased in hypothyroidism, but they are less sensitive than TSH and free T4 measurement.

  • Antithyroid peroxidase (anti-TPO) antibodies are detected in almost all patients with Hashimoto disease and its variants, in 70% of patients with Graves disease, and in a smaller number of patients with various other thyroid disorders such as MNG, nontoxic goiter, and thyroid carcinoma.

Suggested Readings

Khan F, Sachs H, Pechet L, et al. Guide to Diagnostic Testing. Philadelphia, PA: Lippincott Williams & Wilkins, 2002.

Kronenberg HM, Melmed S, Polonsky KS, et al. Williams Textbook of Endocrinology, 11th ed. Philadelphia, PA: Saunders, Elsevier Inc., 2008.

Ross DS. Diagnosis of and screening for hypothyroidism in nonpregnant adults. In: Post TW, ed. UpToDate. Waltham, MA: UpToDate, Inc.; 2018.

Ross DS. Subclinical hypothyroidism in nonpregnant adults. In: Post TW, ed. UpToDate. Waltham, MA: UpToDate, Inc.; 2018.


□ Overview

  • Thyroid enlargement or nodules come to clinical attention when noted by the patient, or as an incidental finding during routine physical examination, or during a radiologic procedure, such as carotid ultrasonography or neck computed tomography (CT).

  • The prevalence of goiter, diffuse or nodular, differs widely depending on the iodine intake by the population living in a given area. In the general population, prevalence of 4.6% has been reported as being clinically detected. By using ultrasound as a screening method, a prevalence of up to 30-50% of an unselected adult population has been described as having goiter.

  • The clinical importance of thyroid nodules is related primarily to the need to exclude thyroid cancer, which accounts for 4-6.5% of all thyroid nodules in nonsurgical series. The diagnostic goal is to efficiently identify those patients who require surgical intervention. A solitary nodule should be evaluated for malignancy no matter what the underlying thyroid disorder is.

□ Etiology

  • Diffuse enlargement of the thyroid gland is seen in the following conditions:

    • ▼ Diffuse toxic goiter—Graves disease; most common cause of endogenous hyperthyroidism

    • ▼ Diffuse nontoxic (simple) goiter—relative deficiency of thyroid hormone

    • ▼ Hashimoto thyroiditis

    • ▼ Organification defect (abnormality in the incorporation of iodine into thyroid hormone precursors)

  • Nodular enlargement of the thyroid gland is seen in the following situations:

    • ▼ Benign solid nodule:

      • Hyperplastic (or colloid) nodule

      • Follicular adenoma

    • ▼ Malignant tumors:

      • Thyroid carcinomas, including papillary, follicular, anaplastic, and medullary carcinomas.

        Papillary/follicular/anaplastic carcinomas arise from thyroid follicular epithelial cells. Papillary and follicular cancers are considered differentiated cancers, and patients with these tumors are often treated similarly despite numerous biologic differences. Most anaplastic (undifferentiated) cancers appear to arise from differentiated cancers.

        Medullary carcinoma arises from calcitonin-secreting C cells and can occur in both sporadic and hereditary forms. The sporadic (noninherited) form accounts for 80% of cases and is usually unilateral. The hereditary form makes up 20% of the cases, is usually
        multicentric, and can be transmitted as a single entity and part of multiple endocrine neoplasia (MEN) types 2A and 2B and familial non-MEN.

      • Lymphomas. Most primary thyroid lymphomas arise in patients who have chronic autoimmune thyroiditis.

    • MNG can present with or without thyrotoxicosis. A retrospective study showed that the risk of malignancy was similar in patients with MNG and one or more dominant nodules to the patients with solitary nodule. Therefore, a dominant nodule in a MNG should be evaluated as if it were a single nodule.

    • ▼ Simple cyst.

□ Who Should Be Suspected?

As mentioned earlier, thyroid nodules can be noted by the patient on self-examinations or by the physician on routine physical examinations. In addition, the presence of goiter or thyroid nodules should be suspected in patients with the following symptoms or signs:

  • Pain, pressure, or fullness in the neck

  • Hoarseness or change in voice

  • Trouble swallowing

□ Laboratory Findings

  • Serum TSH should be measured in any patient with a goiter or nodules. It may be used as a first-line screening test. In MNG, TSH usually is in normal or low-normal range; it is rarely increased.

  • Calcitonin level is increased in virtually all patients with clinical medullary carcinoma. However, it is not cost-effective or necessary in patients without clinical suspicion due to rarity of the disease and high frequency of false-positive results.

  • Measurement of serum antithyroid peroxidase antibody and antithyroglobulin antibody levels may be helpful in the diagnosis of chronic autoimmune thyroiditis, especially if the serum TSH level is elevated.

  • Fine needle aspiration (FNA) biopsy of the nodule is the most time- and cost-efficient evaluation. The reported overall rates of sensitivity and specificity exceed 90% in iodine-sufficient geographic areas. FNA biopsy should be performed in any patient with a solitary or predominant nodule in a multinodular gland, unless the TSH is suppressed, implying autonomous function and, therefore, a low likelihood of malignancy.

□ Imaging Studies

  • Ultrasonography should be used to assess both morphology and size of the goiter and assist in screening and follow-up of thyroid nodules that are difficult to palpate. It may also be useful in directing a FNA biopsy in selected patients. However, this technique cannot distinguish between benign and malignant nodules.

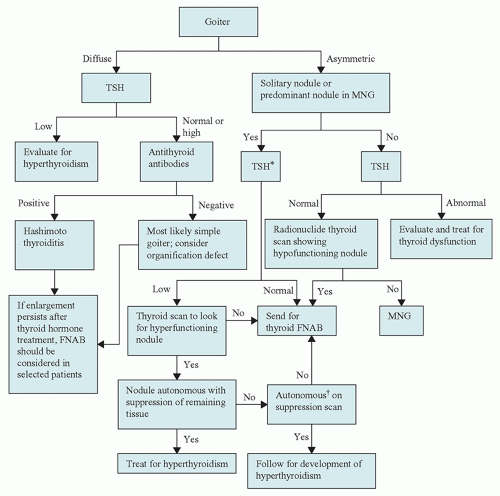

    Figure 8-3. Algorithm for the diagnosis of goiter and thyroid nodules. *Include measurement of serum calcitonin if there is a family history of medullary cancer or multiple endocrine neoplasia, type 2 (MEN2). Autonomy is defined as the ability to concentrate radioactive iodine despite TSH suppression. FNAB, fine needle aspiration biopsy; MNG, multinodular goiter; TSH, thyroid-stimulating hormone.

  • Thyroid scintigraphy. Radionuclide scans can be performed with either iodine-123 or technetium-99m pertechnetate. Most thyroid carcinomas are inefficient in trapping and organifying iodine and appear as cold nodules. Unfortunately, most benign nodules also do not concentrate iodine and, therefore, are cold nodules. The only situation in which an iodine scan can exclude malignancy with reasonable certainty is in the case of a toxic adenoma, which is characterized by significantly increased uptake within the nodule, so-called hot nodule, and markedly suppressed or absent uptake in the remainder of the gland.

Suggested Readings

Khan F, Sachs H, Pechet L, et al. Guide to Diagnostic Testing. Philadelphia, PA: Lippincott Williams & Wilkins; 2002.

Kronenberg HM, Melmed S, Polonsky KS, et al. Williams Textbook of Endocrinology, 11th ed. Philadelphia, PA: Saunders, Elsevier Inc.; 2008.

Ross DS. Clinical presentation and evaluation of goiter in adults. In: Post TW, ed. UpToDate. Waltham, MA: UpToDate, Inc.; 2018.

Ross DS. Diagnostic approach to and treatment of thyroid nodules. In: Post TW, ed. UpToDate. Waltham, MA: UpToDate, Inc.; 2018.



□ Overview

The incidence of Cushing disease is 5-25 cases per 1,000,000 people per year. Other causes of Cushing syndrome are much less common.

□ Etiology

Cushing syndrome may be either ACTH dependent or ACTH independent.

  • ACTH-dependent Cushing syndrome

    • ▼ Cushing disease is the most common cause of Cushing syndrome and comprises 65-70% of the cases. Almost all patients with Cushing disease have a pituitary adenoma. The adenomas are frequently small, and even a gadolinium-enhanced, high-resolution magnetic resonance imaging (MRI) of the sella identifies only 50% of them. Pituitary adenoma cells have a higher than normal set point for cortisol feedback inhibition. This feature is clinically important because it permits the use of dexamethasone suppression to distinguish between pituitary and ectopic ACTH secretion; the latter is usually very resistant to glucocorticoid negative feedback.

    • ▼ Ectopic ACTH secretion by nonpituitary tumors accounts for 10-15% of the cases of Cushing syndrome. A wide variety of tumors, usually carcinomas rather than sarcomas or lymphomas, have been associated with ectopic ACTH secretion. The most common causes are small cell carcinomas of the lung, bronchial or pulmonary carcinoid tumors, and pancreatic islet cell tumors and thymic tumors. Ectopic secretion of ACTH causes bilateral adrenocortical hyperplasia and hyperfunction.

    • ▼ Ectopic corticotropin-releasing hormone (CRH) syndrome constitutes <1% of Cushing syndrome. CRH secretion by nonhypothalamic tumors causes pituitary hyperplasia, hypersecretion of ACTH, and bilateral adrenal hyperplasia.

  • ACTH-independent Cushing syndrome

    • ▼ Adrenal tumors account for 18-20% of the cases of Cushing syndrome. It is important to be sure of the biochemical diagnosis prior to performing any adrenal imaging, since 4% of patients have an adrenal incidentaloma.

    • ▼ Iatrogenic or factitious Cushing syndrome is usually caused by the use of prednisone or potent inhaled, injected, and topical glucocorticoids, such as beclomethasone and fluocinolone. Exogenous glucocorticoids inhibit CRH and ACTH secretion, leading to bilateral adrenocortical atrophy. Plasma ACTH, serum cortisol, and urinary cortisol excretion are all low.

□ Who Should Be Suspected?

Symptoms and signs of Cushing syndrome include hypertension, type 2 DM, and menstrual and psychiatric disorders. Physical examination findings include central obesity, proximal muscle weakness, wide purple striae, spontaneous ecchymoses, and facial plethora (moon face).

□ Laboratory Findings

  • Diagnosis of Cushing syndrome involves three steps (Figure 8-4). The first step is to suspect Cushing syndrome based on the symptoms and signs. The second step is to confirm the presence of excess cortisol production by biochemical testing. The third step is to determine if the hypercortisolism is ACTH dependent and, if so, the source of the ACTH.

  • Tests used to establish the diagnosis of Cushing syndrome are listed in Table 8-2. Urinary cortisol, late-night salivary cortisol, and low-dose dexamethasone suppression tests are now recommended as first-line tests. At least two first-line tests should be unequivocally abnormal to establish the diagnosis of Cushing syndrome. Urinary and salivary cortisol measurements should be obtained at least twice.

    • ▼ Twenty-four-hour urinary cortisol excretion provides a direct and reliable practical index of cortisol secretion. It is an integrated measurement of plasma free cortisol; as cortisol secretion increases, the binding capacity of cortisol-binding globulin is exceeded and results in a disproportionate rise in urinary free cortisol. The two most important factors in obtaining a valid result are collection of a complete 24-hour specimen and a reliable reference laboratory.

    • ▼ Late-night or midnight salivary cortisol concentration can also be used. Saliva is easily collected, and cortisol is stable in saliva for several days even at room temperature. The criteria used to interpret salivary cortisol results vary among different studies. Midnight salivary cortisol is an accurate diagnostic test. A cortisol value >2.0 ng/mL has 100% sensitivity and 96% specificity for diagnosing Cushing syndrome.

    • ▼ Low-dose dexamethasone suppression tests include an overnight 1-mg test and a standard 2-day test. In normal patients, the administration of glucocorticoid results in suppression of ACTH and cortisol secretion. Whereas in Cushing syndrome of whatever cause, there is a failure of this suppression, and the cortisol concentration remains elevated.

    • ▼ Midnight serum cortisol is based on the fact that the normal evening or night nadir in serum cortisol is preserved in obese and depressed patients (pseudo-Cushing syndrome) but not in those with Cushing syndrome. The test needs to be repeated on at least two nights.
      Accuracy of midnight cortisol requires an indwelling catheter, and it is clearly not convenient in an outpatient setting.

  • Tests used to localize the source of the hormone excess: once the diagnosis of Cushing syndrome is confirmed, the next step is to distinguish among the three most common causes—a pituitary tumor, a ectopic ACTH secretion, and an adrenal tumor. Determining whether elevated cortisol is ACTH dependent (due to an ACTH-secreting tumor) or whether it is ACTH independent (due to a primary adrenal disorder) is based primarily on measuring plasma ACTH level.

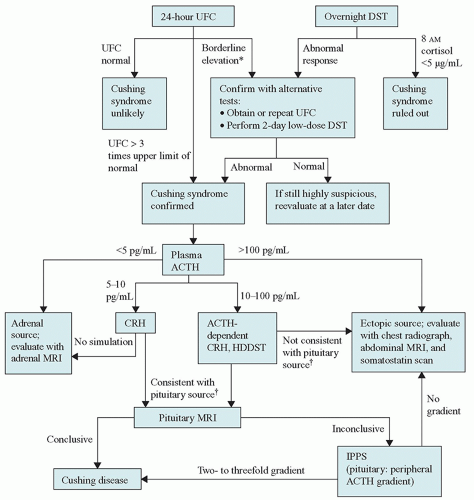

Figure 8-4. Algorithm for the evaluation of Cushing syndrome. *Patients with alcoholism or depression may have pseudo-Cushing syndrome and require a CRH test for further evaluation. †With a pituitary source, ACTH should increase with CRH, and cortisol production should decrease with HDDST. ACTH, adrenocorticotropic hormone; CRH, corticotropin-releasing hormone; DST, dexamethasone suppression test; HDDST, high-dose dexamethasone suppression test; MRI, magnetic resonance imaging; IPSS, inferior petrosal sinus sampling; UFC, urinary free cortisol.

TABLE 8-2. Common Tests Used to Establish the Diagnosis of Cushing Syndrome


Normal Results


24-hour urinary free cortisol (UFC)

<90 µg cortisol per 24-hour period

>3 times the upper limit of normal

1 mg overnight dexamethasone suppression test (DST) given at 11-12 PM

8 AM plasma cortisol <5 µg/dL

Cushing syndrome unlikely if cortisol suppresses normally

Low-dose DST (0.5 mg dexamethasone given every 6 hours for 2 days)

UFC < 10 µg and 17-OHS <2.5 mg in a 24-hour urine collected on the 2nd day

UFC > 36 µg/d 17-OHS >4 mg/d

12 midnight cortisol

<5.0 µg/dL

>7.5 µg/dL

12 midnight salivary cortisol

<2.0 ng/mL

>2.0 ng/mL

17-OHS, 17-hydroxycorticosteroid.

□ Imaging Studies

  • Adrenal imaging is indicated when plasma ACTH levels are <5 pg/mL. Thin-section CT or MRI is the next step in evaluating the adrenals. Bilateral adrenal hyperplasia may be present in ACTH-dependent disease.

  • Somatostatin scanning. Ectopic sources of ACTH are notoriously difficult to identify. Because many of these tumors are carcinoids and have somatostatin receptors, scintigraphy with the somatostatin analog indium-111-pentreotide can sometimes localize tumors not found by conventional techniques.

  • Because both incidental pituitary and adrenal tumors are common, biochemical evaluation should be completed before any imaging studies.

□ Additional Study

Petrosal sinus sampling is used when the anatomic localization fails to identify an unequivocal lesion as suggested by the biochemical testing. This test allows confirmation of the pituitary source of ACTH and identifies the side of the ACTH-secreting lesion. ACTH is measured simultaneously in samples from catheters placed in the left and right inferior petrosal sinuses and compared to peripheral levels. A gradient of two- to threefold is consistent with a pituitary source of ACTH. CRH can also be given during the procedure to enhance its accuracy.

Suggested Readings

Khan F, Sachs H, Pechet L, et al. Guide to Diagnostic Testing. Philadelphia, PA: Lippincott Williams & Wilkins; 2002.

Kronenberg HM, Melmed S, Polonsky KS, et al. Williams Textbook of Endocrinology, 11th ed. Philadelphia, PA: Saunders, Elsevier Inc.; 2008.

Nieman LK. Causes and pathophysiology of Cushing’s syndrome. In: Post TW, ed. UpToDate. Waltham, MA: UpToDate, Inc.; 2018.

Nieman LK. Epidemiology and clinical manifestations of Cushing’s syndrome. In: Post TW, ed. UpToDate. Waltham, MA: UpToDate, Inc.; 2018.

Nieman LK. Establishing the cause of Cushing’s syndrome. In: Post TW, ed. UpToDate. Waltham, MA: UpToDate, Inc.; 2018.

Nieman LK. Establishing the diagnosis of Cushing’s syndrome. In: Post TW, ed. UpToDate. Waltham, MA: UpToDate, Inc.; 2018.


□ Etiology

  • Primary adrenal insufficiency (Addison disease): due to intrinsic diseases of the adrenal glands

    • ▼ Autoimmune adrenalitis. It is the most common cause of primary adrenal insufficiency and comprises approximately 70-80% of the cases. Some of the patients also have other autoimmune disorders, such as hypoparathyroidism, type 1 DM, Hashimoto thyroiditis, Graves disease, or pernicious anemia.

    • ▼ Infections. Common infectious etiologies include tuberculosis, fungi (histoplasmosis, paracoccidioidomycosis), bacteria (meningococcemia, Pseudomonas aeruginosa), and viruses (HIV, CMV).

    • ▼ Adrenal hemorrhage or infarction. Adrenal hemorrhage has been associated with meningococcemia (Waterhouse-Friderichsen syndrome) or Pseudomonas aeruginosa. Anticoagulants are a major risk factor for adrenal hemorrhage.

    • ▼ Metastatic disease. Infiltration of the adrenal glands by metastatic cancers is common. The primary site includes the lung, breast, stomach, and colon. Similar findings can be seen with melanomas or lymphomas.

    • ▼ Drugs. Several drugs may cause adrenal insufficiency by inhibiting cortisol biosynthesis. They include etomidate, ketoconazole, metyrapone, and suramin.

    • ▼ Other risk factors include antiphospholipid syndrome, thromboembolic disease, trauma, stress, adrenoleukodystrophy, and abetalipoproteinemia.

  • Secondary adrenal insufficiency: due to inadequate ACTH secretion by the pituitary

    • ▼ Panhypopituitarism. Symptoms are due to a decrease in all pituitary hormones, resulting in hypoadrenalism.

    • ▼ Isolated ACTH deficiency.

    • ▼ Megestrol acetate. Megestrol is used as an appetite stimulant in patients with metastatic breast cancer or AIDS. It suppresses the hypothalamic-pituitary-adrenal axis.

  • Tertiary adrenal insufficiency: due to inadequate CRH secretion by the hypothalamus

    • ▼ Following abrupt cessation of high-dose glucocorticoid therapy

    • ▼ Following correction of Cushing syndrome

□ Who Should Be Suspected?

Clinical symptoms and signs of adrenal insufficiency vary depending on the rate and extent of loss of adrenal function, whether mineralocorticoid production is preserved, and the degree of stress.

  • Adrenal crisis. It refers to acute adrenal insufficiency, and the predominant manifestation is shock. Other symptoms include anorexia, nausea, vomiting, abdominal pain, weakness, fatigue, lethargy, confusion, or coma. Adrenal crisis may occur in patients with gradual onset who have been stressed by infection, trauma, or surgery.

  • The most common symptoms of chronic adrenal insufficiency are chronic malaise, anorexia, nausea, vomiting, and generalized weakness.

  • Patients with long-standing primary adrenal insufficiency may present with hyperpigmentation. Other frequent signs are hypotension or orthostatic hypotension. Calcification of the auricular cartilage occurs exclusively in men.

  • Patients with secondary and tertiary adrenal insufficiency usually have intact mineralocorticoid function and do not develop hyponatremia and/or hyperkalemia.

□ Laboratory Findings

Mar 20, 2021 | Posted by in PATHOLOGY & LABORATORY MEDICINE | Comments Off on Endocrine Diseases

Full access? Get Clinical Tree

Get Clinical Tree app for offline access
